Introduction
This circuit is a repeater for GPS data.
It is intended to connect to Garmin-38 (and similar) hand held GPS receivers that don't have
external antennas. The purpose for the repeater is to allow the GPS to be outside, exposed
to the satellite view, and allow the user to see the data below decks at the navigation station.
Versions
Within the code there is opportunity to easily configure for a 16x4 display or
a 20x4 display, as well as configure it for crystal speeds from 4 to 20MHz, and for
nautical, metric, or statute speed display. Although the description below
is for the 16x4 version, the 20x4 is quite similar.
Herb Young in Australia built a very nice boxed version of the repeater.
 Click on photo to display full size version.
 Click on photo to display full size version.
Features
The repeater displays several pages of data pertaining to both the GPS
and the boat electrical system. A DB-9 jack is on the front panel for
the purposes of connection of a laptop to upload and download GPS waypoint data, etc.
This code is a good example of how to process serial data using the PIC16F87x hardware
UART and the serial interrupt.
Specifications
- Power: 10-16VDC at ~150mA including GPS
- Analog: three inputs, 14.99VDC maximum displayed value
- Data: NMEA-0183 2.0 format (4800 baud, TTL level, RMB & RMC data sentences)
Operation
Apply power to the repeater. The following screen is displayed.
GPS Repeater v15 02/02/03 c Jon Fick
|
- The three buttons cycle through the three pages, which are:
- Position (Latitude - Longitude - Speed - Heading)
- Waypoint (Waypoint name - Steering - Distance - Bearing)
- Battery voltages
- Pressing and holding the Position button for between one and three seconds toggles the background illumination on and off.
- Pressing and holding the Position button for four or more seconds resets the microprocessor (like power-on-reset.)
- Pressing and holding the Position button during power-up will display the Setup Page, described below.
Position page
The position page displays position, speed (in knots), and magnetic heading.
LAT 44° 12.734 N LON 71° 43.125 W SPD 4.6 kt HDG 177°
|
Waypoint page
This page displays items pertinent to waypoints and routes.
- The first line displays the waypoint name currently in use.
- The second line displays cross-track-error steering information.
If on course, the words "On track" appear. Otherwise, an "L" or "R" and a distance
is displayed after the word "STEER". This is an indication of whether to steer
left or right to get back on the calculated track. If less than 1.0 nautical mile,
the distance is expressed in feet ("ft") instead of nautical miles ("nm").
- The third line displays the distance to the waypoint in nautical miles.
If this distance is decreasing, the word "TO" preceeds the distance;
if increasing, the word "FM" (from) preceeds the distance. If the GPS sends
the arrival flag, the word "ARRIVED" appears to the right of the waypoint name
on the top line. ("ARRIVED" doesn't disappear until you acknowledge
the arrival and clear it at the GPS.)
- The fourth line displays the magnetic compass bearing to the waypoint.
If for some reason the magnetic variation has not been received
from the GPS yet, the displayed bearing is True rather than Magnetic,
and is followed by "T". The magnetic variation is queried and updated once every
ten minutes.
"WAYPT2" STEER R 124ft DIST TO 2.1nm BEARING 203°
|
If a waypoint is not currently selected in the GPS, the following is displayed.
- none - STEER DIST BEARING
|
Battery page
Three batteries can be monitored. This is intended for 12 volt batteries. Although
the analog inputs can withstand higher voltages, the maximum displayed value is
14.99 volts.
BATTERY STATUS BATT#1 12.1 V BATT#2 13.4 V REFRIG 11.5 V
|
Setup page
The Setup page allows the user to select a startup
page (POSITION, WAYPOINT, or BATTERY.)
- Press and hold the button during power up.
- A screen is displayed that allows display contrast to be set.
- Release after "SETUP MODE" is displayed.
- Release the button when the words "initial page" is displayed.
- Press and hold the button when the desired page name is displayed. (For instance, select "WAYPOINT" if you want the Waypoint page to be displayed first every time power is applied.
SETUP MODE Press on correct initial page WAYPOINT
|
If a page name is not selected by pressing the button, the previously
selected page name continues to be used.
The value is stored in EEPROM and may be changed at any time.
Operational notes
- When the unit is first powered on, and any time the Position page
is displayed, the current magnetic variation is saved and used to convert all heading
and bearing information to magnetic degrees. The repeater checks the $GPRMC data
sentence once every 10 minutes to update the magnetic variation.
- A slowly flashing symbol in the lower right corner of the page indicates
processor loop activity.
- If the GPS is off or the data connection is broken, the following message is displayed...
- If the GPS sends a "satellite warning flag", the following message is displayed. This would occur if satellites aren't being received (GPS indoors?) or if the satellites are broadcasting some sort of warning.
- If the baud rate received from the GPS is other than 4800, the following message is displayed.
This would occur, for instance, if NMEA-0182 protocol (1200 baud) is selected or during Garmin
protocol (9600 baud) uploads/downloads.
On beyond...
The panel-mounted version on my own sailboat has lengthy code that
goes well beyond what I describe above. Features:
- interfaces for my Garmin GPSMAP 172C (both Garmin and NMEA protocols)
- USB interface to connect my laptop to either Garmin or NMEA bus
- Seatalk® interface for my Raytheon instruments (speed, depth, autopilot) and my
my tank level monitors
- battery voltage interface
- diesel tachometer interface

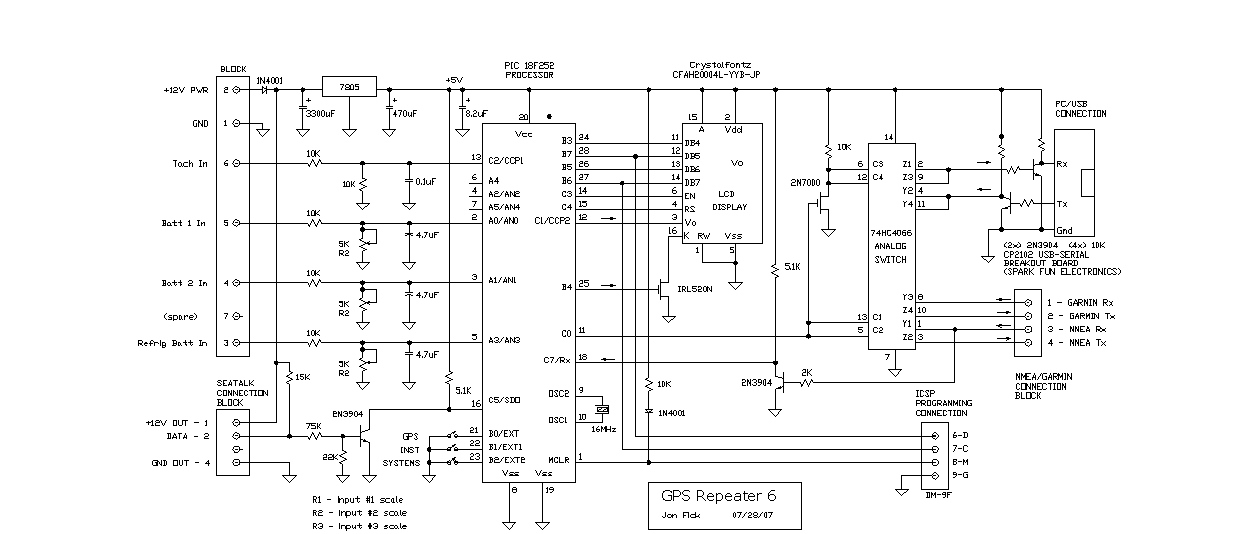

A PIC18F252 is used. If interested, code and
schematic are here.
 Click on photo to display full size version.
Franson Technology AB markets Windows software
that provides the ability to create several virtual COM ports from one incoming GPS,
and provides a simulated NMEA-0183 data stream for demo or testing. It has a
number of other intesting features. There are other GPS and Serial tools
as well.
Technical Reference
HARDWARE
- The PIC is configured for power-on delay and brownout reset to guarantee
proper resetting of the PIC.
- Pots R1, R2, R3 are adjusted to display correct battery voltages. To calibrate,
apply 13.98 volts and adjust the pot to display correctly. 14.99 volts and higher
simply displays as "14.99".
- Contrast is adjusted by software control of the PWM output.
- The DB-9 jack may be omitted if laptop PC connection is not needed.
- The diode on the 12V power supply input provides reverse current protection.
More importantly, it isolates the repeater from 12V collapse (during engine
starting, for instance.)
- Any suitable 5V regulator may be used.
- If it is not desired to power the GPS from the repeater, you may omit the 7808.
- Any LCD display that has an industry-standard HD44780 compatible controller may be
used. "Supertwist" displays have wider viewing angles than others. Two examples of
LED backlight supertwist displays are:
- LCM-S01604DSF from Lumex available as
part number 67-1761-ND for $28 from DigiKey.
- CFAH1604A-YYB-JP from Crystalfontz.
It is approximately $25.
SOFTWARE
- Basic sequence: The main loop code selects the NMEA-0183 data sentence, such as
$GPRMC... that will be looked for in the data stream from the GPS. The serial
stream is received by the hardware UART and serviced by the RDA serial interrupt.
After the beginning of the sentence is identified, the remainder of the sentence
is saved in RAM. When the end of the sentence is received, the main loop calls
the parsing routine to extract certain data fields for display. The display is
updated at the rate at which the GPS sends it's data streams out (every two seconds
in the case of the GARMIN-38.) I identify the data sentence by the following in my code:
- I predefine the data sentence I'm looking for (GPRMC) and set it equal to 75.
#define GPRMC_CODE 75
- I then call the InitRxBuffer subroutine by :
InitRxBuffer( GPRMC_CODE );
- In that subroutine the variable cRxMsgTypeDesired is set to 75 (what "GPRMC" was defined as)
cRxMsgTypeDesired = cCode;
- During this time the serial interrupt has been interrupting anytime a character is received
from the GPS. The serial interrupt is near the top of my code (I usually put interrupt code first.)
It's called:
#int_rda
void SerialInterrupt ( void )
- In that interrupt I use a switch-case statement that first looks for a "$" (case 0),
then reads in the next five characters (cases 1-5) and after each of those characters exclusive
ORs the character into the previous ones, and then makes a decision whether it's the data sentence
I want (GPRMC). When you exclusive OR the five characters in "GPRMC" together, you get 75.
So, if after the fifth character I have 75, then I know it's a GPRMC sentence, and I keep going,
saving the characters. Otherwise I go back to state 0, which is to again search for the "$".
- The code doesn't capture and check the checksum characters at the end of the
data sentences.
- The calls to the DisplayScaledVoltage function in the code allows you to scale
the ADC voltage reading (0-5V = 0-1023 counts) to any desired voltage.
- The code may be recompiled for any clock frequency between 4 and 20MHz. The
crystal frequency is defined at the top of the code. Note that two of the time
constants are automatically changed in code to accommodate changes in frequency.
- Below is the data sentence stream that is transmitted from my Garmin 38
every two seconds at 4800 baud. The RMC and RMB sentences are the only ones
the repeater uses. This is similar to what you should see from your GPS if
you look at the data stream with HyperTerm or Procomm or similar terminal
emulators. At the very least, there should be RMC and RMB sentences for full
utilization of the repeaters functions.
$GPGLL,4400.000,N,07143.125,W,020822,A*35
$PGRMZ,584,f,3*12
$PGRMM,WGS 84*06
$GPBOD,347.7,T,004.3,M,MOB,R2NHB*23
$GPRTE,1,1,c,0,TYC,R2NHB,MOB*01
$GPWPL,4119.832,N,07205.454,W,TYC*16
$GPRMC,020824,A,4400.000,N,07143.125,W,000.0,360.0,161201,016.6,W*7C
$GPRMB,A,9.99,L,R2NHB,MOB,4437.379,N,07300.351,W,066.9,304.5,,V*66
$GPGGA,020824,4400.000,N,07143.125,W,1,00,2.0,177.9,M,-32.2,M,,*7F
$GPGSA,A,3,,,,,,,,,,,,,10.1,2.0,3.0*03
$GPGSV,1,1,00,,,,,,,,,,,,,,,,*79
$PGRME,15.0,M,22.5,M,15.0,M*1B
- Could the repeater be designed to use other than the RMC and RMB sentences
above? Yes...simply use my code as a base, modify accordingly for the sentence
you want and map it to the page you desire.
- If you find that you are seeing constant "GPS warning" messages on the screen,
it could be that you have the GPS receiver sitting on your bench inside a structure
and therefore not able to receive satellites. In that case your GPS deliberately
puts out the warning ("V" character instead of the "A" character you see in those
sentences above.) My Garmin 38 has a simulation mode that enables me to avoid
these errors.
- The top line of the welcome screen is blank and could contain your boat name
or whatever.
|
